Amardeep Enterprise Lapping Machine Manufacturers in India
Lapping Machines are single plate machines available in various models suitable for the vast majority of lapping applications including high stock removal, ultra-hard materials and precision work to light band tolerances. We are manufacturer, supplier and exporter of Lapping Machines in India and abroad. Amardeep Enterprise has been designed to be an all-in-one lapping and polishing workstation for the production of flat surfaces. Our unbeatable combination of advanced control and process features allow for the accurate processing of modern generations of IC’s. A series of specialized fixtures have been developed for lapping and polishing samples by us. In addition to size and shape, the lapping machine differs in the type of thickness control techniques they employ. The Lapping and Polishing Fixtures are designed to be used either by hand or with a lapping machine.
Specification :
| DESCROPTION | MLP-18 | MLP- 24 | MLP- 28 | MLP- 36 | MLP- 48 | MLP -56 |
| LAP PLATE OD | 457 | 610 | 712 | 915 | 1220 | 1425 |
| CONDITIONING RING OD mm | 210 | 272 | 320 | 410 | 560 | 595 |
| CONDITIONING RING ID mm | 170 | 229 | 270 | 360 | 500 | 530 |
| CONDITIONING RING HT mm | 89 | 89 | 89 | 89 | 100 | 100 |
| NO. OF RINGS | 3 | 3 | 3 | 3 | 3 | 3 |
| PLATE — RPM | 30/40/50 | 30/40/50 | 30/40/50 | 30/40/50 | 30/40/50 | 30/40/50 |
| TIMER RANGE — MTS | 0-99 | 0-99 | 0-99 | 0-99 | 0-99 | 0-99 |
| DRIVE MOTER — HP | 2 | 3 | 3 | 5 | 10 | 15 |
| ABRASIVE PUMP MOTER – HP | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| MACHINE DIMENSIONS | 1100x845x865 | 1100x915x865 | 1100x1070x865 | 1220x1220x865 | 1300x1550x915 | 1525x1580x1625 |

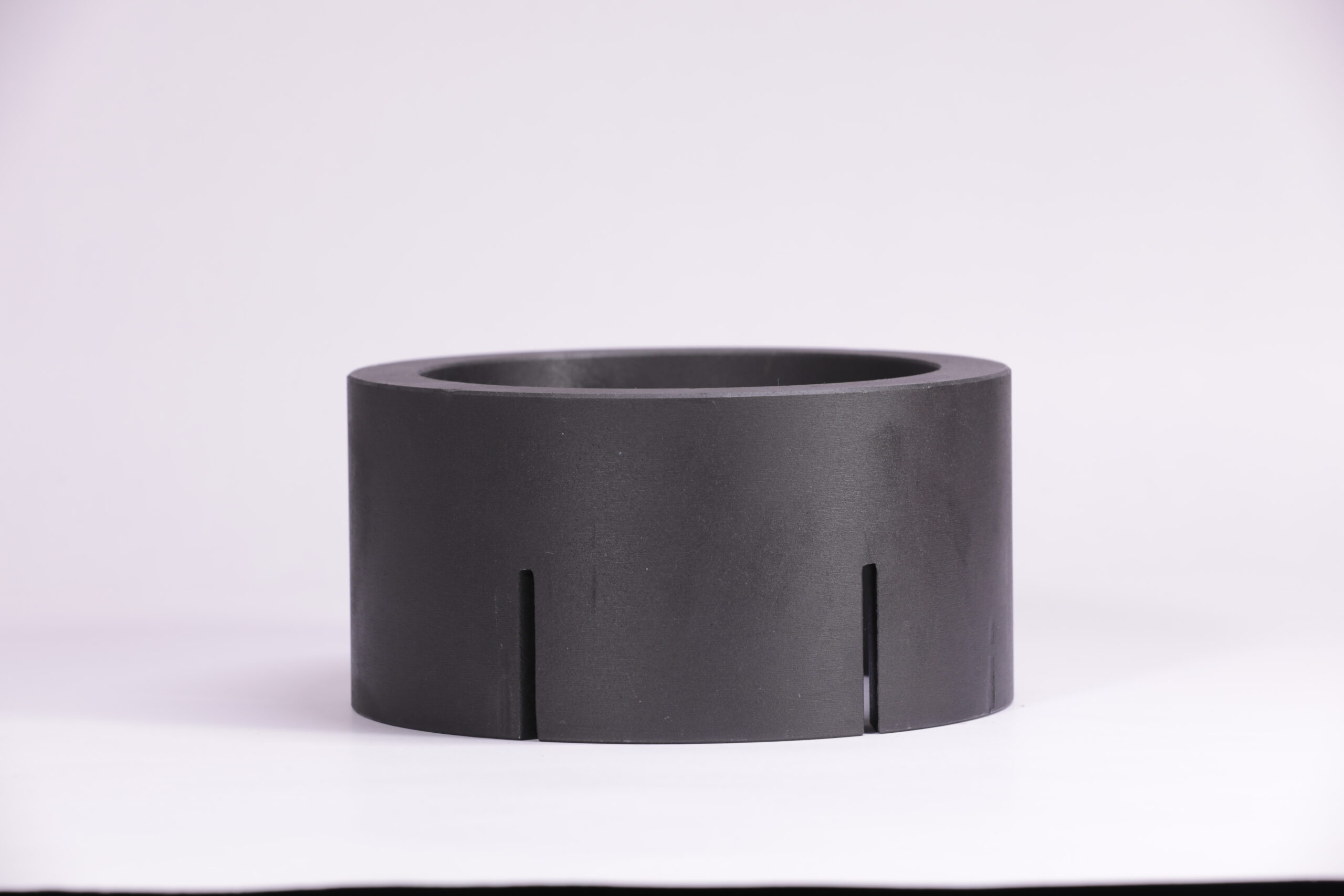

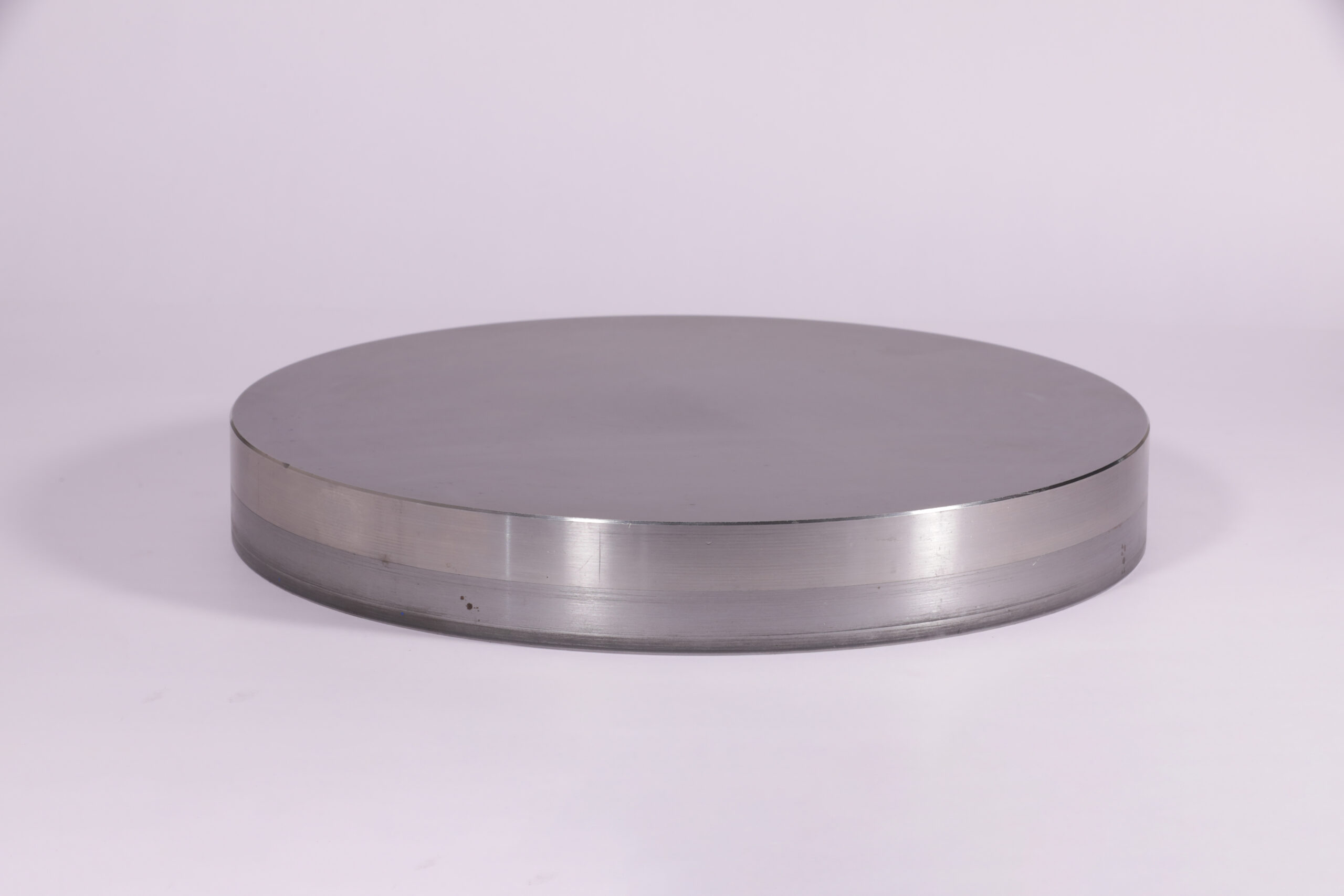

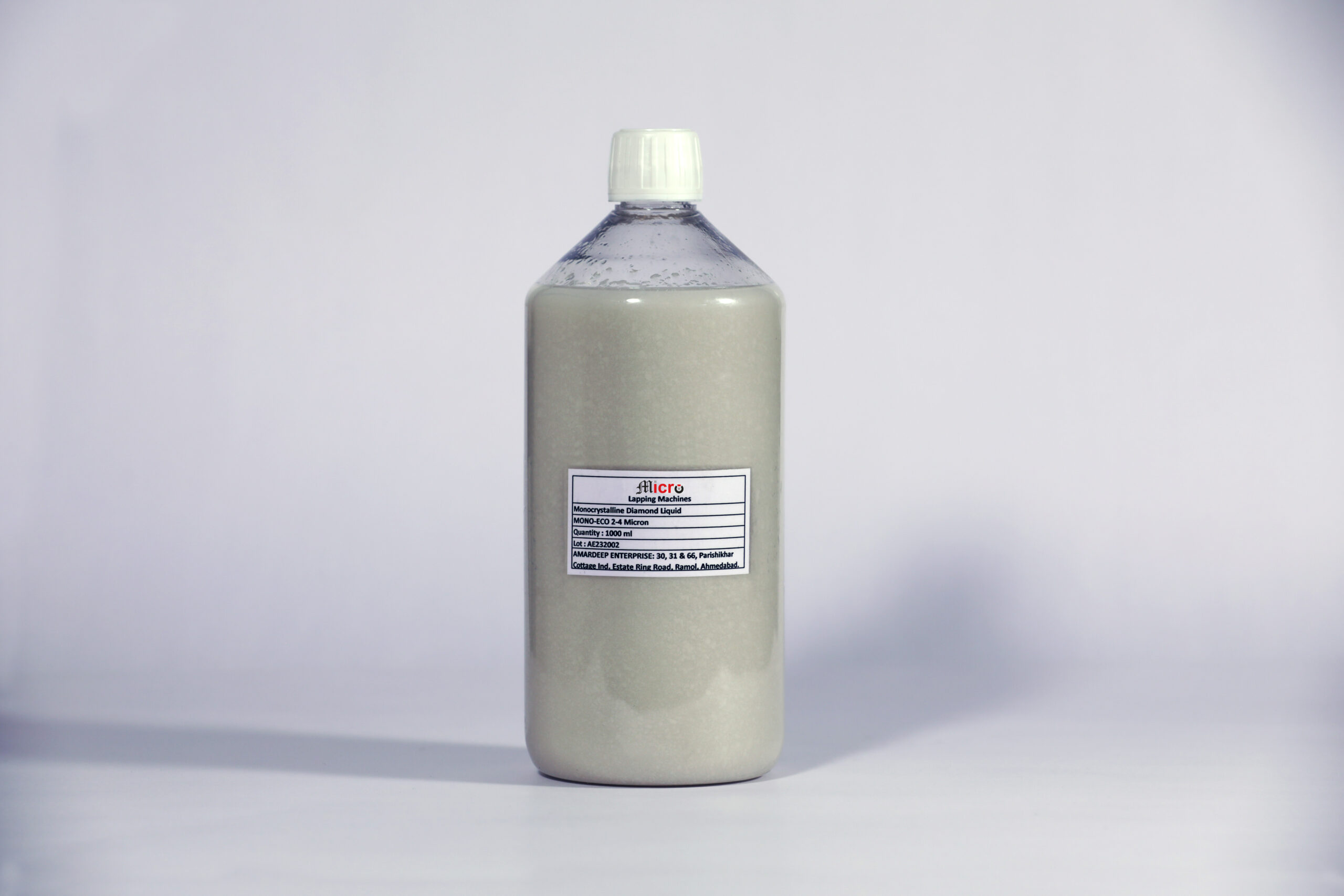

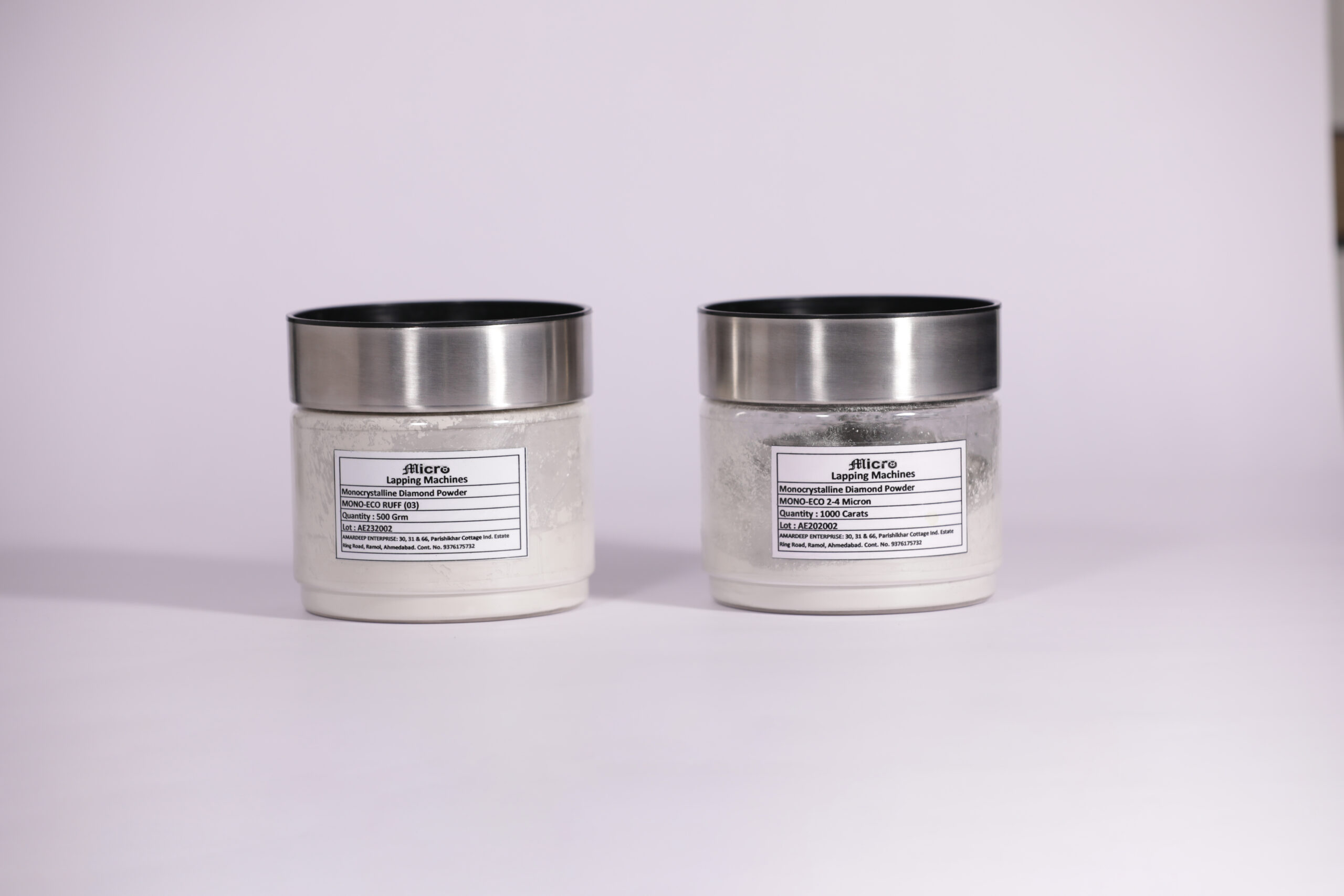

Lapping Machine Parts :
